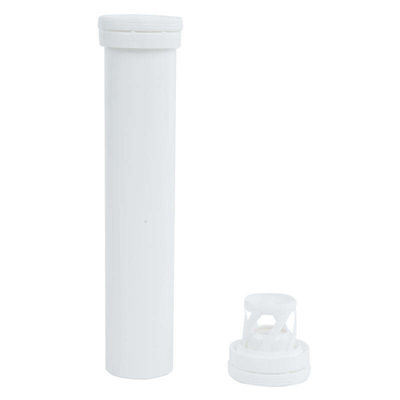

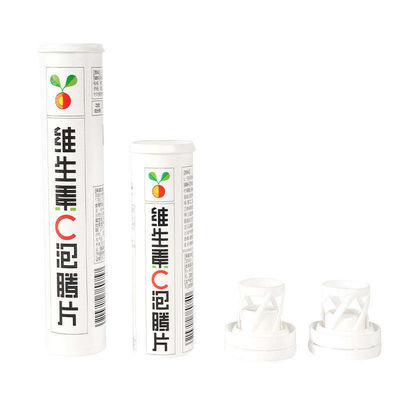

Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging with desiccant

  • Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging with desiccant
مكان المنشأ شنغهاي ، الصين
اسم العلامة التجارية JND
إصدار الشهادات FSSC 22000;ISO 9001;
رقم الموديل VCB29T144
الحد الأدنى لكمية 50000 وحدة
الأسعار $0.08/unit without printing
تفاصيل التغليف PE Bag +Paper Carton Size: 595*400*350mm لأنبوب 550pcs ؛ 595*400*350mm لـ 1500pcs Cap
وقت التسليم 7-15 أيام
القدرة على العرض 27000 وحدة في اليوم

اتصل بي للحصول على عينات مجانية وكوبونات

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
تطبيق لوحي الفوهرة من الفيتامينات والمعادن والمكملات الغذائية مادة بوداي ص
مادة الغطاء PE نوع البلاستيك ص
طباعة اللون 6 ألوان كحد أقصى OEM يقبل
الطباعة طباعة النقل الساخن أو العدوانية مادة الغذاء الصف PP
مو 50000 وحدة صب صب الحقن
اسم المنتج أنبوب قرص فوز من الدرجة الغذائية مع غطاء كاب غطاء حلزوني مع المجففة
لون مخصصة شكل اسطوانة
اترك رسالة
منتوج وصف

※Product Description



Introducing our Empty Food Grade PP 29mm OD and 144mm Height Tube for Tablet Packaging, designed to meet the highest standards of quality and convenience. Crafted from premium food-grade polypropylene, this tube ensures exceptional durability and safety, ideal for preserving the integrity of your tablets. Its 29mm outer diameter and 144mm height offer ample space for a variety of tablet sizes, while the secure closure system helps maintain freshness.



The inclusion of a desiccant within the tube effectively combats moisture, protecting your tablets from deterioration and ensuring they remain potent and effective. This tube's sleek, compact design also makes it easy to handle and store, providing a practical solution for both small and large quantities. With its combination of robust material, effective moisture control, and user-friendly design, our tube stands out as the ideal choice for your tablet packaging needs.





1. Product Size

JND Code Tube Height(mm) Neck Outside(mm) Neck Inside(mm) Cap Diameter(mm) Desiccant Weight(g)
VCB29T144        144          29          27             34             2.1





2. Technical Specification





Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠29*144 Diameter 29.0±1.0mm caliper Main
      Height 144.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main






3. Storage:





  • Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
  • Need to pad higher, away from the ground and wall 10cm above. no pressure
