Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant

  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
مكان المنشأ شنغهاي ، الصين
اسم العلامة التجارية JND
إصدار الشهادات FSSC 22000;ISO 9001;
رقم الموديل VCB29T99
الحد الأدنى لكمية 50000 وحدة
الأسعار $0.07/unit without printing
تفاصيل التغليف PE Bag +Paper Carton Size: 595*400*350mm لأنبوب 550pcs ؛ 390*300*475mm لـ 1500pcs Cap
وقت التسليم 7-15 أيام
القدرة على العرض 27000 وحدة في اليوم

اتصل بي للحصول على عينات مجانية وكوبونات

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
تطبيق لوحي الفوهرة من الفيتامينات والمعادن والمكملات الغذائية مادة بوداي ص
مادة الغطاء PE نوع البلاستيك ص
طباعة اللون 6 ألوان كحد أقصى OEM يقبل
الطباعة طباعة النقل الساخن أو العدوانية مادة الغذاء الصف PP
مو 50000 وحدة صب صب الحقن
اسم المنتج أنبوب قرص فوز من الدرجة الغذائية مع غطاء كاب غطاء حلزوني
لون مخصصة شكل اسطوانة
اترك رسالة
منتوج وصف

※Product Specification


Such tube contains a set of individually wrapped effervescent tablets, making it easy to carry and use on-the-go.

The effervescent tablet packaging from JND can be printed by hot transfer processing to compete with the traditional label more uniquely, more attractively so as to enhance the brand value.

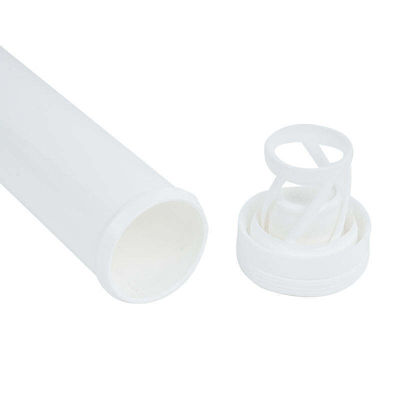

The cap of effervescent tube is cleverly designed, which is composed of desiccant, spiral spring and anti-theft ring. It plays different roles in protecting the safety and effectiveness of tablets.


1. Product Size

JND Code Tube Height(mm) Neck Outside(mm) Neck Inside(mm) Cap Diameter(mm) Desiccant Weight(g)
VCB29T99 99 29 27 34 2.1





2. Technical Specification





Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠29*99 Diameter 29.0±1.0mm caliper Main
      Height 99.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main






3. Storage:





  • Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
  • Need to pad higher, away from the ground and wall 10cm above. no pressure
