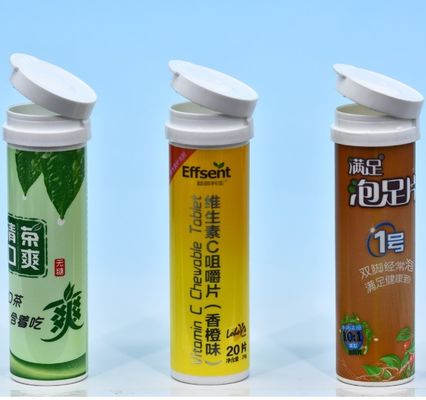

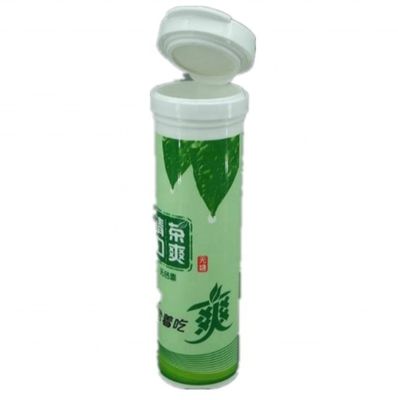

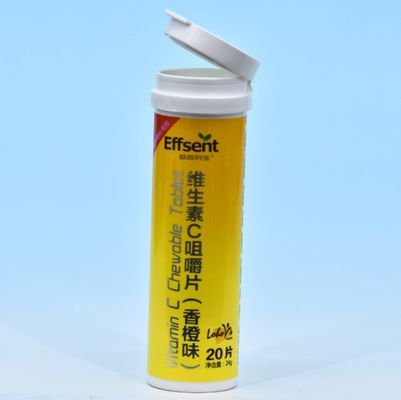

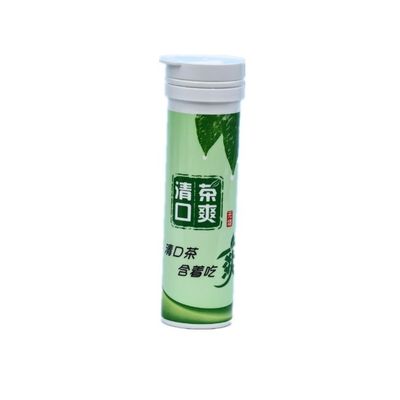

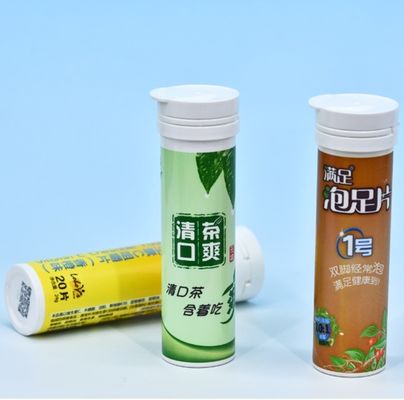

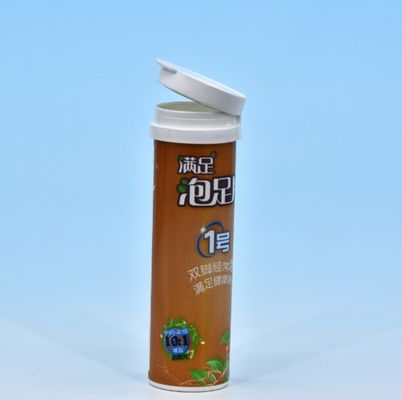

Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements

  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
  • Plastic PP Tubes with or without Desiccant Spiral Lids for the packaging of supplements
مكان المنشأ anhui ، الصين
اسم العلامة التجارية JND
إصدار الشهادات FSSC 22000; ISO 9001;
Model Number VCB24T104
الحد الأدنى لكمية 50000 قطعة
الأسعار $0.067/pieces 10000-19999 pieces
Packaging Details PE bag +Paper carton Size:580*380*330mm for 700pcs tube;580*380*330mm for 3500pcs lid
وقت التسليم 3-5 أيام
Supply Ability 50000pcs for tube per day; 30000pcs for lid per day

اتصل بي للحصول على عينات مجانية وكوبونات

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
الاستخدام الصناعي العناية الشخصية Use other Personal care, packaging
مادة الغذاء الصف PP صب صب الحقن
لون لون مخصص شعار custermized
OEM يقبل مادة الغطاء PE
عينة مجانًا الاستخدام أنبوب الدواء
Product name Effervescent Tablet Tube with spiral lid Keyword packaging plastic bottle
اترك رسالة
منتوج وصف

Product Specification:



  • As Below show the key AQL=0.65, Main AQL=2.5, Light AQL=4.0 under the standard of GB2828.1-2012



  • Inspect the function and size according to the special inspection level S-3, and inspect the appearance according to the general inspection level II



Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠24*104 Diameter 24.0±1.0mm caliper Main
      Height 104.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
      Height 33.0±1.0mm Height gauge Main
  4 ￠24 Spiral Cap Diameter 22.0±0.8mm caliper Main
      Height 27.0±1.0mm Height gauge Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main







بطاقة:

التعبئة المتفجرة,تغليف أنبوب فوار

effervescent tube packaging
